The equine hoof is a hydraulic masterpiece—and when its internal circulation falters, the consequences can be catastrophic. Laminitis alone affects an estimated 7–15% of the global equid population annually, and recovery hinges on restoring microvascular function within the lamellar tissue. This Vsun horse hoof red light therapy wrap is the first device in the Vsun physiotherapy line purpose-built for the foot: a curved, 80-LED boot that wraps around the coronary band, hoof wall, and heel bulbs, delivering dual-wavelength phototherapy directly to the most vascularly vulnerable structure in the equine body.
Why the Hoof Needs Its Own Device
Leg wraps treat the soft tissues of the cannon and fetlock. They are not shaped for the foot. This hoof boot’s curved panel design (49 cm total length, 10 cm width) follows the contour of the hoof capsule from heel to heel, wrapping under the bulbs and across the dorsal wall. This anatomical fit ensures the LEDs sit at a consistent distance from the coronary band—the zone where new hoof wall is generated and where laminitic inflammation concentrates its destructive effects.
Eighty 5050SMD tri-core LEDs populate the panel, each housing one 660 nm red emitter flanked by two 850 nm near-infrared chips. The 1:2 red-to-NIR ratio is maintained across all modes and brightness levels. In the hoof specifically, the deep-penetrating 850 nm component targets the lamellar dermis and distal phalanx circulation, while the 660 nm component addresses the coronary band’s superficial vascular plexus.
Four-Mode Phototherapy Tailored to Hoof Pathology
- Steady Mode (Blue Indicator): Continuous output. Use in the acute phase of laminitis (first 72 hours) when the goal is cellular metabolic support without any mechanical pulsation that might aggravate a painful foot.
- Breathe Mode (Green Indicator): Gentle luminous wave. Applied during the subacute phase when circulation is being restored and the hoof capsule is stabilising.
- 10 Hz Pulse (Red Indicator): Moderate-frequency pulsation. Clinical preference for chronic laminitic cases and navicular syndrome, where sustained vasodilation and enhanced lymphatic clearance are the therapeutic objectives.
- 40 Hz Pulse (Cyan Indicator): Higher-frequency pulsation. Associated with accelerated tissue remodelling; used during the resolution phase of hoof abscess cavities and following corrective trimming procedures.
Speak with our equine product team about integrating this hoof therapy boot into your laminitis management protocol.
Practical Design for the Barn and the Clinic

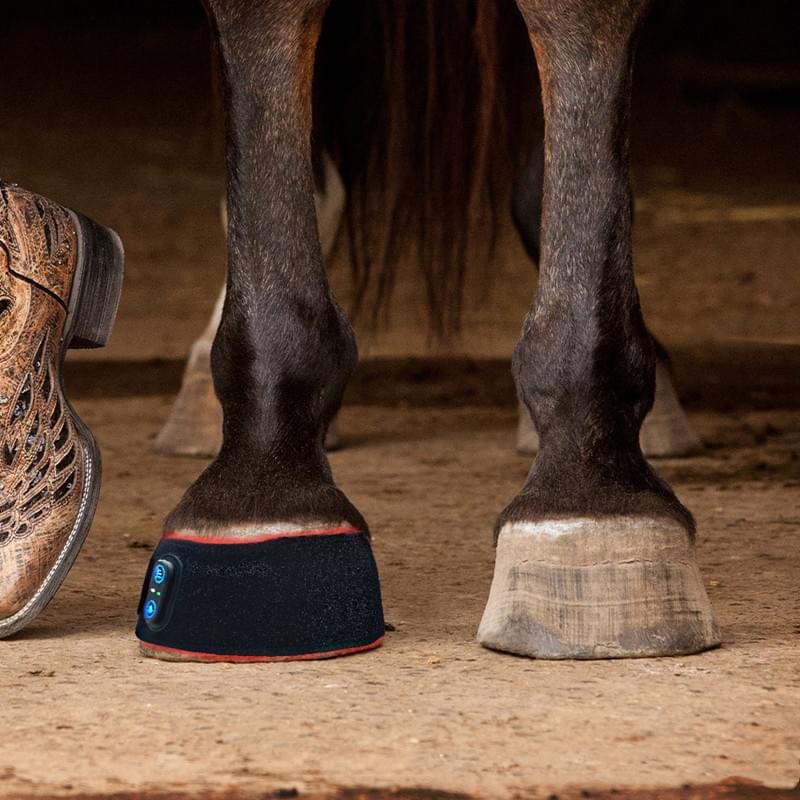

This boot secures with adjustable Velcro straps that accommodate hoof sizes from pony to draft horse. A 2,000 mAh built-in battery powers multiple 20-minute sessions without tethering the horse to a power outlet—critical for animals on stall rest that may react to cords. USB Type-C charging uses the industry-standard connector; barn staff can charge from a power bank while on the road at competitions or from a wall adapter in the stable aisle.

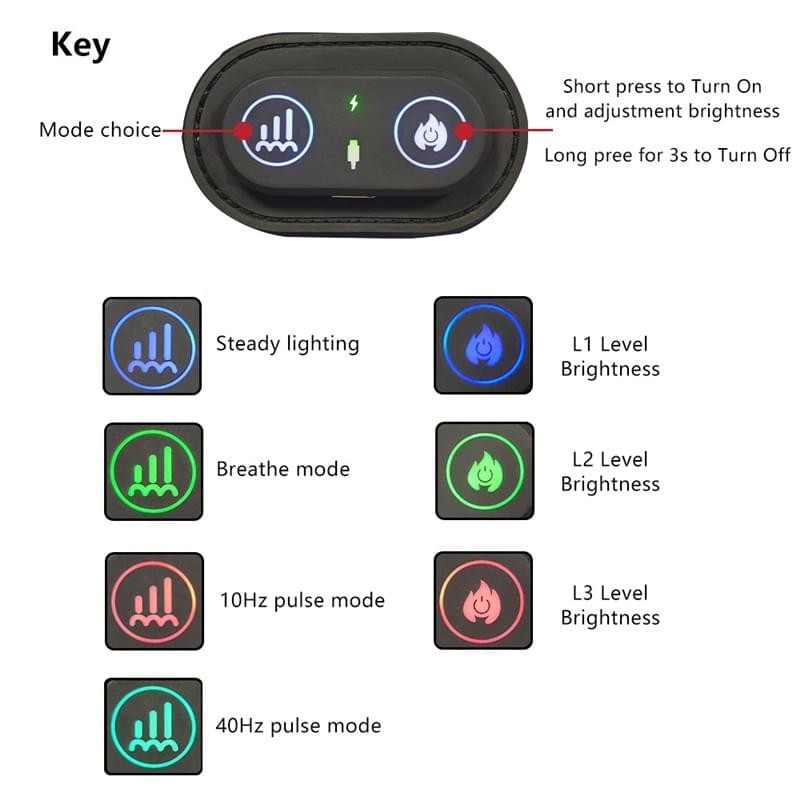

The dual-button controller is identical to the leg wrap interface, reducing the learning curve for practices that stock both devices. Left button cycles modes (colour-coded indicator LEDs provide at-a-glance confirmation). Right button handles power and brightness (L1/L2/L3), with a three-second long press to shut down.
Technical Specifications
| Total LEDs | 80 (5050SMD tri-core: 660 nm + 850 nm × 2) |
|---|---|
| Wavelength Ratio | 660 nm : 850 nm = 1 : 2 |
| Operating Voltage | DC 5V |
| Rated Power | 10 W |
| Total Length | 49 cm (curved wrap design) |
| Light Zone Width | 10 cm |
| Inner Diameter | 35 cm (adjustable) |
| Battery | 2,000 mAh (built-in Li-ion) |
| Modes | 4 (Steady / Breathe / 10 Hz / 40 Hz) |
| Brightness Levels | 3 (L1, L2, L3) |
| Timer | 20 minutes (auto-off) |
| Charging | USB Type-C |
Clinical Protocol Reference
| Condition | Phase | Suggested Protocol |
|---|---|---|
| Acute laminitis | Inflammatory (days 1–3) | Steady, L1, 1–2× daily |
| Subacute laminitis | Stabilisation (days 4–14) | Breathe, L2, 1–2× daily |
| Chronic laminitis | Maintenance | 10 Hz, L3, 1× daily |
| Navicular syndrome | Ongoing management | 10 Hz, L2–L3, 1–2× daily |
| Hoof abscess (post-drainage) | Resolution | 40 Hz, L2, 1× daily × 5–7 days |
| Post-trimming / post-shoeing | Recovery | Breathe, L1, as needed |
The equine foot is too specialised for a general-purpose wrap. This horse hoof red light therapy wrap is shaped for the hoof, calibrated for lamellar-level penetration, and equipped with the mode flexibility to serve every phase of foot pathology—from the first hours of a laminitic crisis through months of chronic maintenance.
See the complete Vsun equine physiotherapy line or request a formal veterinary quotation.
