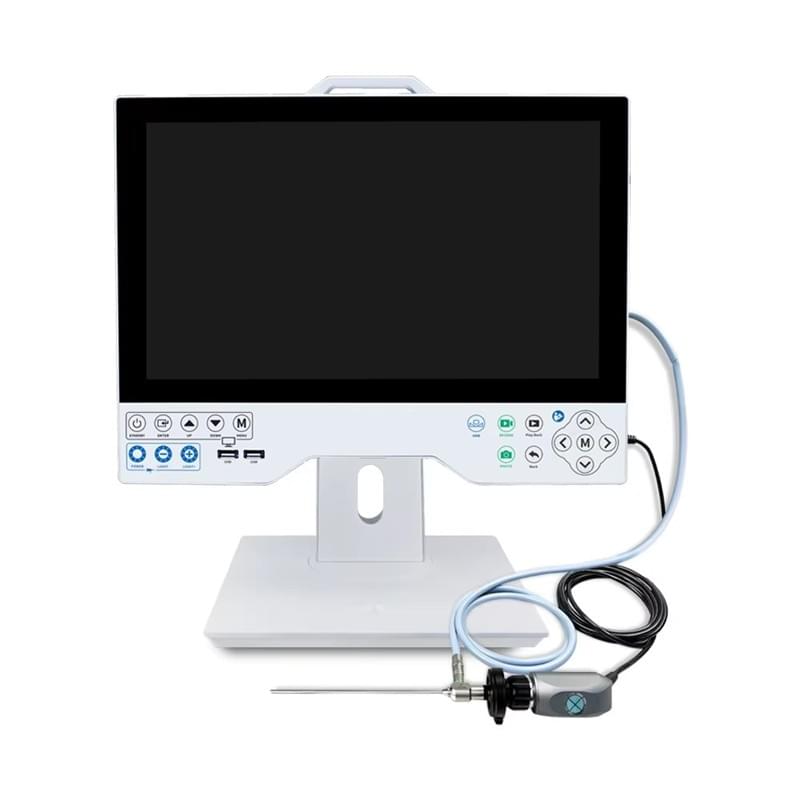

Integrated Full HD Video Endoscopy System
The VS-VY-04 rigid endoscopy camera system is an integrated imaging platform designed for modern surgical environments. By combining a high-definition CMOS camera, medical LED light source, display monitor, and video processing unit, the system simplifies endoscopic procedures while ensuring excellent image clarity.

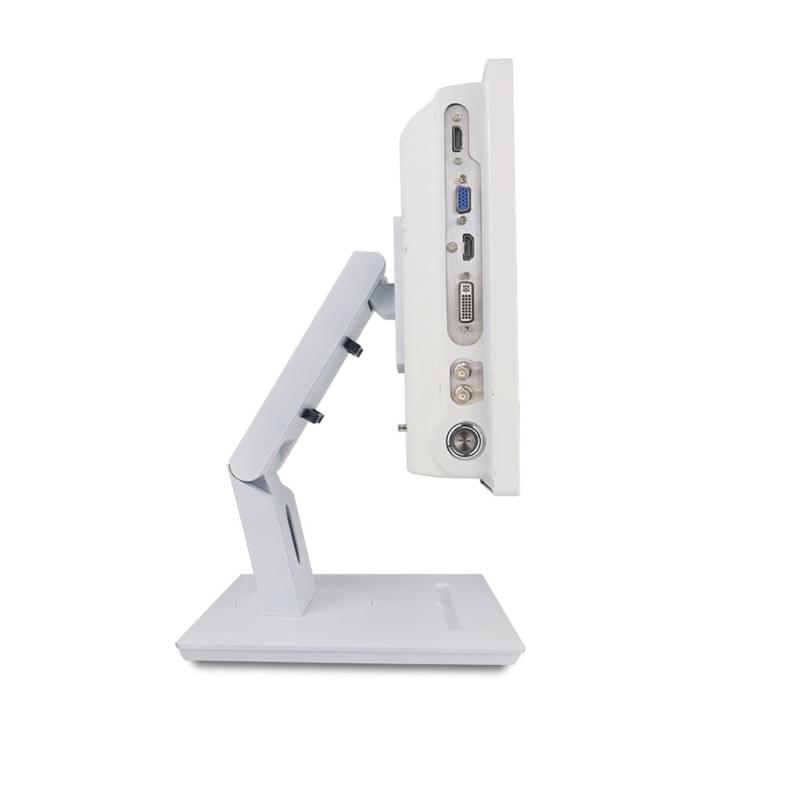

With support for multiple output interfaces including HDMI, SDI, CVBS, and VGA, the system can easily connect to surgical monitors, recording devices, and hospital imaging systems.
The compact all-in-one design reduces equipment complexity in operating rooms, making it suitable for hospitals, clinics, training centers, and veterinary medical facilities.
Key Features of the Rigid Endoscopy Camera System
High-Definition CMOS Imaging
The system uses a high-resolution CMOS sensor to capture clear and detailed surgical images. This allows doctors to observe anatomical structures accurately during minimally invasive procedures.
Integrated Medical LED Light Source
A built-in 80W medical cold LED light source provides stable illumination during endoscopic operations, ensuring bright and consistent visualization without excessive heat.
All-in-One Surgical Imaging Platform

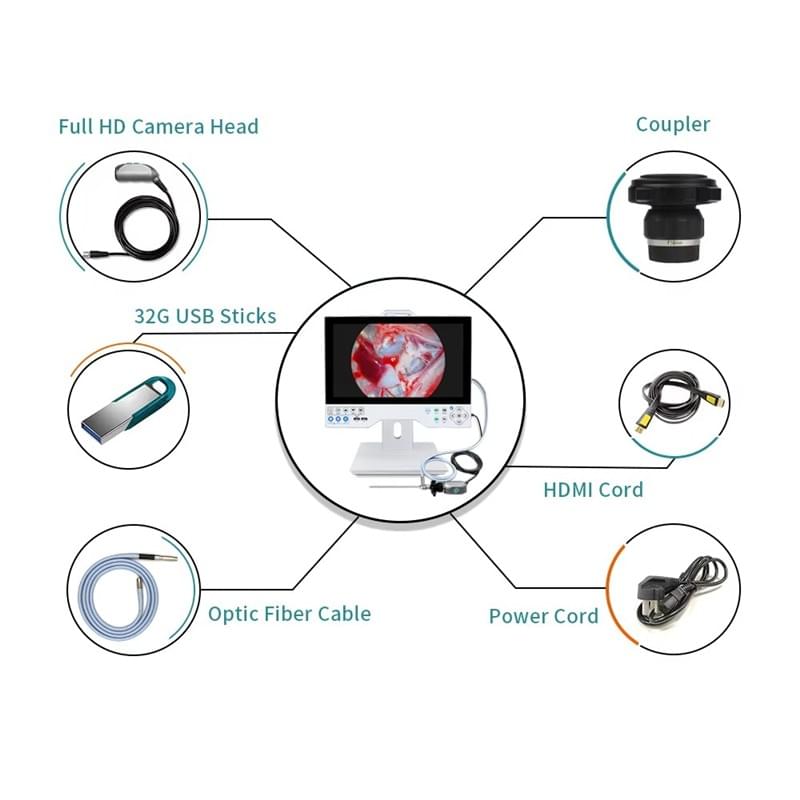

The rigid endoscopy camera system integrates multiple components into one device, including:
- Camera control unit
- Medical light source
- Image processor
- Monitor compatibility
- Video recording support
This integrated structure simplifies setup and improves workflow efficiency in operating rooms.
Multiple Monitor Options
The system supports various monitor sizes, including:
- 15-inch
- 24-inch
- 27-inch
- 32-inch
These options allow medical facilities to configure the system according to clinical requirements.
Easy Image Capture and Storage
Doctors can easily record procedures using the built-in functions:
- Image capture
- Video recording
- Freeze frame
- Digital zoom
The system supports USB storage and local playback, allowing convenient documentation and review of surgical procedures.
System Console Specifications
| Category | Parameter | Specifications |
| System Console | Input Interface | 1080P |
| Output Interface | HDMI / SDI / CVBS / VGA | |
| Built-in Light Source | 80W (Effective Power) | |
| Control Interface | Keypad (Motherboard menu & RX/TX shortcuts) | |
| Shortcut Functions | Freeze, White Balance, Video, Photo, Digital Zoom | |
| Signal Noise Ratio | <45dB | |
| Power Supply | AC110V – 240V | |
| System Dimensions | L390 × W266 × H425 mm | |
| Operating Temperature | −10℃ ~ 60℃ |
Camera Head Specifications
| Parameter | Specifications |
| Image Sensor | CMOS |
| Effective Pixels | 1845(H) × 1097(V) (Approx. 2.13MP) |
| Resolution | SDI 1080P |
| Digital Zoom | 0–8x |
| Brightness Control | 1–30 Steps |
| Application Modes | Laparoscope, ENT, Arthroscope, Cystoscope |
| Functions | Auto White Balance (AWB), Image Freeze |
| Supported Languages | English, Chinese, Japanese, Korean |
| Storage / Working Temp | −30℃ ~ 60℃ |
Video Endoscope Specifications
| Parameter | Specifications |
| Outer Diameter | 8.4Fr (2.8mm) |
| Working Channel | 3.6Fr (1.2mm) |
| Working Length | 750mm |
| Field of View | 120° |
| Direction of View | 0° |
| Depth of Field | 5–50mm |
| Deflection Angle | Up 270° / Down 270° |
Clinical Applications
The rigid endoscopy camera system supports multiple medical specialties and surgical procedures.
Laparoscopy
Used for abdominal minimally invasive surgery, providing high-definition imaging for precise surgical navigation.
ENT Procedures
Suitable for ear, nose, and throat examinations, allowing clear visualization of narrow anatomical areas.
Arthroscopy
Supports joint examination and minimally invasive orthopedic procedures.
Urology and Cystoscopy
Provides detailed internal imaging for urinary tract diagnostics and procedures.
Training and Medical Education
The system is also widely used in medical teaching, training laboratories, and clinical research.
Advantages of the All-in-One Endoscopy Camera System
Medical professionals choose this rigid endoscopy camera system for several key reasons:
✔ Integrated imaging and illumination system
✔ Clear full-HD visualization
✔ Multiple output interfaces for flexible connection
✔ Simple operation and quick setup
✔ Suitable for multiple surgical disciplines
The integrated design reduces equipment clutter while ensuring consistent imaging quality during surgical procedures.
Packaging and Delivery
| Item | Details |
| Packaging Type | Standard export protective carton |
| Transport Protection | Foam-protected packaging |
| Delivery | International shipping available |
Each unit is securely packaged to ensure safe transportation and reliable delivery.
If you are searching for a complete all-in-one endoscopy camera system for hospitals or medical projects, our team can provide professional guidance and tailored solutions.
👉 Reach out to us directly for consultation or partnership opportunities: https://www.veteqpt.com/contact
