The laboratory autoclave sterilizer is a fully automatic steam sterilization system designed for dental clinics, laboratories, and medical facilities. With fast cycle times and intelligent controls, it ensures safe, efficient sterilization of instruments, glassware, and medical materials.
Fast & Efficient Sterilization for High-Volume Use
Time efficiency is critical in clinical environments. This 20L automatic autoclave delivers:
- Rapid sterilization cycle: 4–6 minutes
- Pre-set temperature and sterilization time
- Consistent saturated steam performance
This makes it ideal for busy dental clinics and laboratories that require quick turnaround.
Intelligent Automatic Control System
Designed for ease of use, the system features:
- Preset sterilization programs
- Indicator lights for real-time status
- Automatic shut-off with buzzer alert
👉 Simplify Your Sterilization Workflow – Get a Quote Today
Even first-time users can operate the steam sterilizer for laboratory with minimal training.
| Item | Specification |
| Chamber Volume | 20L φ250×420mm |
| Working Pressure | 0.22Mpa |
| Working Temperature | 134°C |
| Temperature Adjustment Range | 105-134°C |
| Timer Range | 0-60 minutes |
| Temperature Uniformity | ≤±1°C |
| Power | 1.5KW/AC220V,50Hz (AC110V,60Hz) |
| Sterilization Tray | 340×200×30mm (3 pcs) |
| Dimension | 480×480×384mm |
| Outer Package Dimension | 700×580×500mm |
| Net/Gross Weight | 44/40 kg |
Closed Steam Circulation System
- Internal steam-water circulation
- No external steam discharge
- Clean, dry sterilization environment
This system improves energy efficiency while maintaining a hygienic workspace, especially important for labs and dental rooms.
Advanced Safety Protection System
Safety is built into every cycle:
- Over-temperature protection
- Over-pressure automatic release
- Low water level protection
- Automatic cold air discharge
These features ensure stable and safe sterilization operations.
Durable Stainless Steel Construction
- Full stainless steel chamber
- Corrosion-resistant and easy to clean

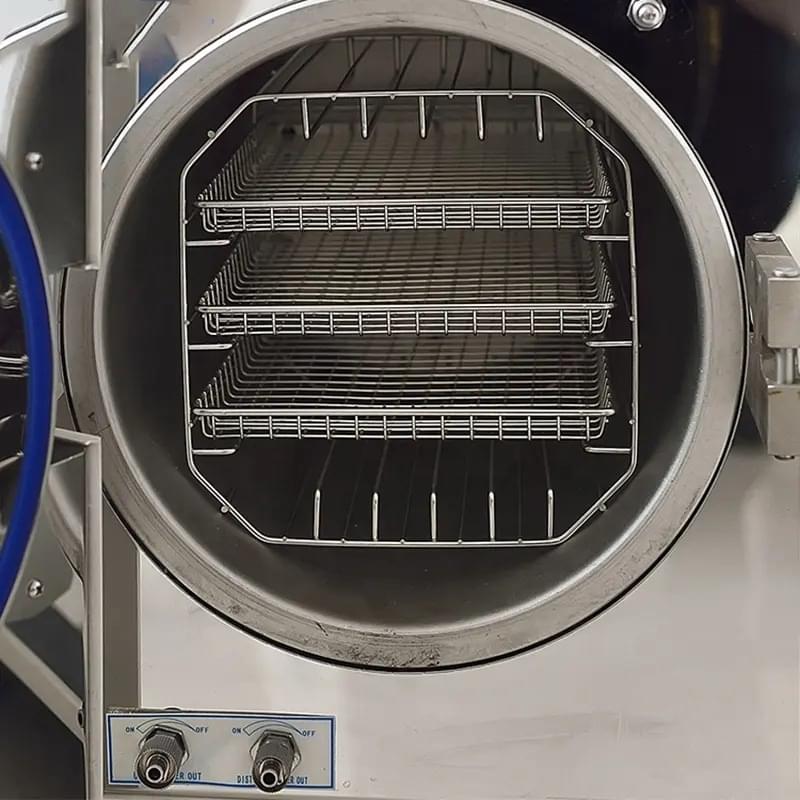

- Includes 3 stainless steel sterilization trays
Built for long-term use in demanding environments such as:
- Research laboratories
- Dental clinics
- Veterinary hospitals
Wide Application Scenarios
This dental instrument sterilizer is suitable for:
- Surgical instruments
- Glassware and lab containers
- Culture media and solutions
- Dressings and medical supplies
📊 Example: Clinics using automated autoclaves can improve sterilization efficiency by over 30%, reducing patient turnaround time.
Multi-Industry Versatility
Beyond medical use, the unit can also be applied in:
- Industrial facilities
- Research institutions
- High-altitude environments (multi-purpose use)
Its flexibility makes it a valuable sterilization solution across industries.
Why Choose Vsun Vet Autoclave
- Fast 4–6 minute sterilization cycles
- Fully automatic operation system
- Closed-loop steam design
- Comprehensive safety protection
- Durable stainless steel structure
- OEM customization available
👉 Upgrade Your Sterilization System Now, Contact Vsun Vet for Bulk Orders
The laboratory autoclave sterilizer from Vsun Vet combines speed, safety, and automation in one compact system. Designed for modern clinics and laboratories, it ensures reliable sterilization performance while improving workflow efficiency.
