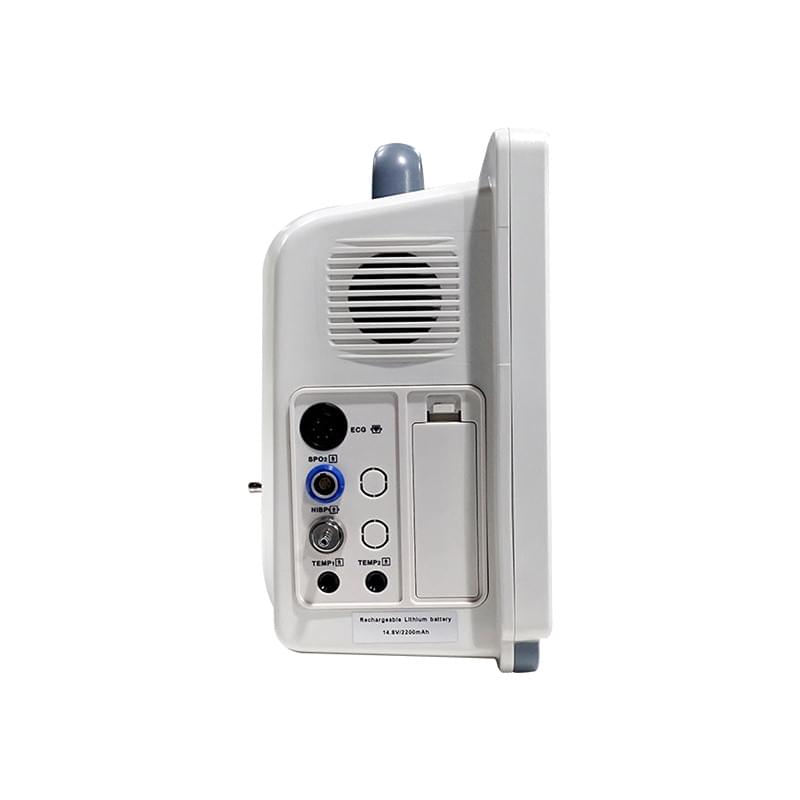

その 12.1 Inch Veterinary Monitor delivers the perfect balance of visual clarity and compact efficiency for any clinical environment. With its expansive 12.1-inch screen offering 800×600 resolution, clinicians gain exceptional visibility without sacrificing valuable space. This powerful unit is ready to support multi-channel data, displaying up to 13波チャンネル and essential parameters (ECG, NIBP, SpO₂, PR, TEMP, RESP) for comprehensive patient oversight.
High-Fidelity Vitals with Advanced Signal Processing
Achieving accurate vital signs on diverse animal species requires dedicated technology. This monitor is equipped with advanced signal processing to ensure every reading is reliable.
- Superior SpO₂ Performance: The pulse oximetry function utilizes a dedicated DSP algorithm to counter patient movement interference effectively. By supporting Perfusion Index (PI) monitoring, the vet monitor low perfusion DSP technology ensures reliable measurements even during compromised circulation.
- Tailored Blood Pressure: A specialized 獣医師専用アルゴリズム guarantees safe and accurate Non-Invasive Blood Pressure (NIBP) readings, suitable for patients ranging from small cats to large horses. We supply five adaptable NIBP cuff sizes and essential over-pressure protection.
Integrated Anesthesia Gas Safety and Analysis
Enhance surgical safety with the built-in, integrated anesthesia gas analysis capability. This optional veterinary patient monitor gas analysis system automatically identifies and measures the concentration of five major anesthetic agents: Halothane (HAL), Enflurane (ENF), Isoflurane (ISO), Sevoflurane (SEV), and Desflurane (DEV). Integrating this vital safety check directly into the monitor streamlines your procedure and provides immediate, crucial data.
| モニタリング項目 | 特定のパラメーター |
| 心電図（ECG） | – Leads: 3 leads/5 leads 14- 5-lead mode: aVR, aVL, aVF, V, Ⅰ, Ⅱ, Ⅲ 15- Number of channels: 3 ECG channels, 7 ECG waves in ECG full-lead mode 16- Heart Rate (HR) range: 15~500 Beats Per Minute (BPM) 17- Gain: X1/4, X1/2, X1, X2 18- Wave speed: 12.5, 25, 50 millimeters per second (mm/s) 19- Supported functions: Pacemaker detection, arrhythmia analysis, ST segment analysis 20, 21, 22- Filter mode: Others, Monitoring, Surgery 23 |
| 呼吸（RESP） | – Measurement principle: Impedance between Right Arm (RA)-Left Leg (LL) or Right Arm (RA)-Left Arm (LA) 24- RESP leads: Ⅰ/Ⅱ 25- Wave speed: 6.25, 12.5, 25 millimeters per second (mm/s) 26- Apnea alarm: Supported, alarm delay of 5~120 seconds 27 |
| 非侵襲的血圧（NIBP） | – Measurement method: Oscillometry 28- Applicable animal weight: <10 kg ~ >20 kg 29- Unit: Millimeters of Mercury (mmHg), Kilopascal (Kpa) 30- Modes: Manual, Auto, STAT 31- Measurement and alarm range: Systolic Blood Pressure (SYS): 40~280 mmHg 32 Diastolic Blood Pressure (DIA): 10~220 mmHg 33 Mean Arterial Pressure (MEAN): 20~240 mmHg 34 Cuff pressure (Cuff): 0~300 mmHg 35- Static pressure error: ±3 mmHg 36- Automatic measurement interval: 1~480 minutes 37 |
| 酸素飽和度（SpO） | – Monitoring parameters: Oxygen Saturation (SpO₂), Pulse Rate (PR), Perfusion Index (PI) 38- Accuracy: ±2% error when SpO₂ is in the range of 70%~100% 39- Pulse rate range: 20~250 Beats Per Minute (bpm) 40 |
| 温度（TEMP） | – Number of channels: 2 41- Measurement and alarm range: 0~50℃ 42- Sensor type: Rectal probe 43- Unit: Celsius (℃) 44- Accuracy: ±0.1℃ 45 |
| Recorder | – Number of channels: 3 46 |
| データ保管 | – Trend graph and trend table: ≥720 hours 47- Wave review: 2 hours 48- Alarm review: 200 entries 49 |
| アラーム | – Alarm levels: 3 levels 50- Alarm limits: All limits can be adjusted by the user 51- Special function: Unique human voice alarm 9 |
| Invasive Blood Pressure (IBP) | – Sensor compatibility: Compatible with OHMEDA, BD, and EDWARD brands 52- Number of channels: 2 53- Measurement range: -50~360 millimeters of Mercury (mmHg) 54- Accuracy (without sensor): ±2% or ±1 mmHg, whichever is larger 55 |
| 二酸化炭素（CO） | – Measurement range: 0%~13% 56- Accuracy: ±2 mmHg when CO₂ < 5.0% (under ATPS conditions) 57- Respiratory rate: 3~150 Beats Per Minute (bpm) 58 |
Network Integration, Data Management, and Customization
Designed for the modern clinic, this monitoring system supports seamless data flow and customizable operation.
- Intelligent Alerts: ユニーク ヒューマンボイスアラーム cuts through operating room noise, providing immediate, unmistakable communication of early warnings.
- Seamless Network Integration: The monitor is ready for networking via a standard RJ45 port and features an optional USB WIFI module for effortless connection to your Central Monitoring System (CMS).
- Workflow Flexibility: Users can independently toggle parameters and wave channels on or off, or select a large font screen view for maximum clarity. The system stores over ≥720h of patient data and supports easy USB output for external review.
For large-scale procurement, we offer significant B2B customization, including customized logo, packaging, and graphic changes (Minimum order: 20 pieces).
Elevate your clinical performance with this highly adaptable monitoring solution. Would you like to request a free demonstration of the integrated gas module capabilities?
