Vsun Vet’s Portable Visual Semination Gun for Cow is a revolutionary tool in veterinary reproductive health. This portable device offers clear observation of the uterine environment, enabling accurate diagnosis of conditions like inflammation and ovarian cysts. It features a heated probe rod for constant temperature sperm transfusion, providing comfort to cows and ease of operation.
The Visual Semination Gun boasts a high-definition screen for precise diagnosis and analysis of uterine health. The 45° bevel screen is ergonomically designed for semen transfusion personnel, ensuring clear visuals throughout the process. Equipped with a special injection needle, the gun ensures safety and precision, making insemination efficient and reliable.
Choose Vsun Vet’s Portable Visual Semination Gun for its accuracy in estrus judgment, enhanced comfort during procedures, and versatile functionality. It’s not just a tool; it’s a complete solution for veterinary insemination and uterine health assessment.
Advantages List:
- Clear observation of uterine diseases for accurate assessment

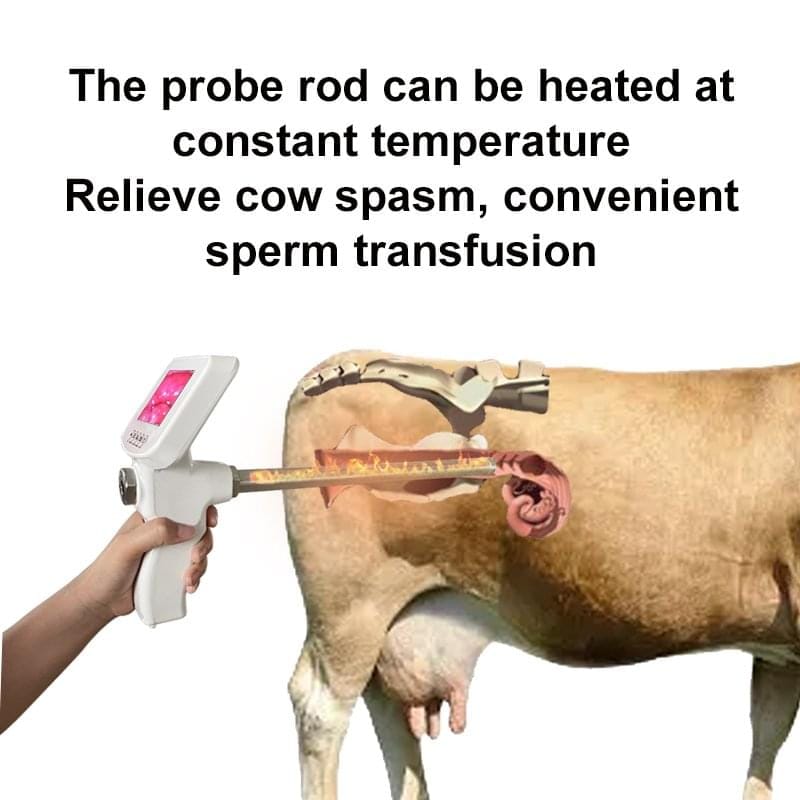

- Heated probe rod for comfortable sperm transfusion, especially in winter

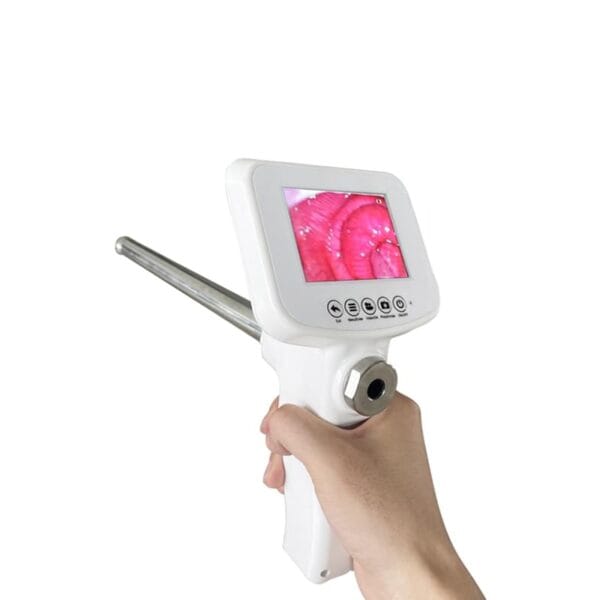

- High-definition screen for precise diagnosis and analysis
- Special injection needle ensures safety and ease of passage through the uterine opening
- 45° bevel screen for convenient observation by semen transfusion personnel
- Versatile functionality for insemination and auxiliary medication injection

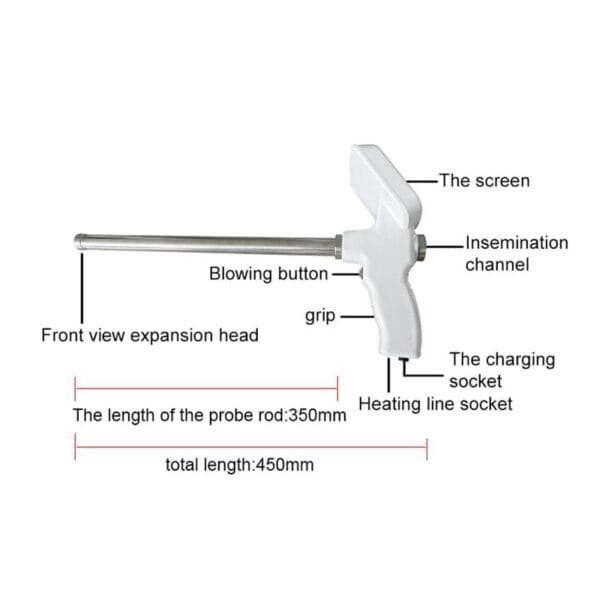

Parameters:
| Parameter name | Rotary style (large) |
|---|---|
| The total length | 450mm |
| The handle width | 35mm |
| The length of the probe rod | 350mm |
| The diameter of probe rod | 22mm |
| Expansion head length | 13mm |
| Diameter of expansion head | 24mm |
| Air channel diameter | 2.5 mm |
| insemination channel Diameter | 11mm |
| Camera size | 3.9 mm |
| The screen size | 3.5″ |
| Camera pixel | 15 million pixels |
| Memory capacity | 16g |
| Battery capacity | 2000ma |
| Charger power | 2A,5V |
| Length of insemination gun | 700mm |
| Length of outer tube | 700mm |
How to use the Portable visual semination gun for cow？
- Wipe the whole gun with analcohol swab and clean the cow’svulva.
- Put the thawed frozen tube into the fertilizing needle and cover it with an external thimble for later use.
- Insert the visual semen infusiongun into the vagina, about 5-10cmand then keep it horizontal until there is resistance.
- Look at the screen to make sure the tip of the ball has reached the cervix.f you can’t see the camera clearly.press the blow button on the front of the handle to blow away the mucus or impurities.
- After reaching the uterus, insert thesemen infusion gun into the uterusabout 10cm and reach the bottom of the uterus. Slowly push the semen gun and inject the semen.
Elevate your veterinary practice with Vsun Vet’s Portable Visual Semination Gun for Cow. Experience the benefits of accurate diagnosis and comfortable insemination procedures. For a demonstration or to learn more about how this innovative tool can enhance your reproductive health services, contact our sales team today.
