The VS-A1-MII portable veterinary anesthesia machine is the ultimate solution for delivering safe, controlled anesthesia in challenging environments. Designed with ultimate portability and integrated functionality, this unit is ready for quick deployment. Its circuit-free anesthesia unit design allows you to conduct surgery at any time, anywhere, without reliance on external power or complex electronic configuration.
これ rugged portable anesthesia machine is built to military-grade standards, ensuring it can withstand harsh environments and long-distance transport, making it an ideal choice for veterinary field care, disaster response, and inter-hospital transport.
Key Advantages for Enhanced Field Safety
The VS-A1-MII is engineered for safety and simplicity, providing high-fidelity monitoring in a compact package:
- Easy Manual Operation: Features a manual breathing mode for straightforward operation, eliminating the need for extensive training.
- Enhanced Monitoring: Safety is ensured with three barometer monitoring systems and a two-tube flow meter of oxygen to precisely track parameters during surgery.
- Extended Use: It supports a single or multiple carbon dioxide canister setup, perfect for longer surgical procedures in remote locations.
- Complete Autonomy: The entire machine has no circuit configuration, guaranteeing that anesthesia surgery can be carried out instantly, irrespective of power availability.
Rugged Design and Quick Deployment Features
The core design of the VS-A1-MII prioritizes rapid startup and reliable operation, even at critical moments. Its Ultimate Portability is achieved through a lightweight design and an integrated carrying case, allowing for quick deployment anywhere—an essential feature for field use. The unit offers Modular Connectivity, enabling fast connection to portable ventilators and oxygen cylinders to immediately create a complete anesthesia workstation. Due to its Military-grade protection standards, the machine is inherently Rugged and Reliable, capable of withstanding harsh environments and long-distance transport. Furthermore, its intuitive user interface guarantees Ease of Use, minimizing training time and ensuring rapid operational success in emergencies. For increased versatility and mobility, an optional trolley and ventilator are also available.
| Item | 仕様 |
| Application | Portable Veterinary Anesthesia Machine |
| Tidal Volume (Manual Mode) | 20 – 1500 mL |
| Gas Supply | O₂ + N₂O: 0.25 – 0.65 MPa |
| Flowmeter | O₂: 0.1 – 10 L/min N₂O: 0.1 – 10 L/min |
| APL Valve | 0.5 – 6.0 kPa |
| O₂ Flush | 25 – 75 L/min |
| Ventilation Modes | Closed / Semi-closed / Semi-open |
| CO₂ Canister | 1000 mL Low-resistance circle absorber Minimal gas leakage 60 cmH₂O over-pressure relief |
| Vaporizer Options | Halothane / Isoflurane / Sevoflurane |
| Dimensions (L × W × H) | 53 × 57 × 44 cm |
| Gross Weight | 25 kg |

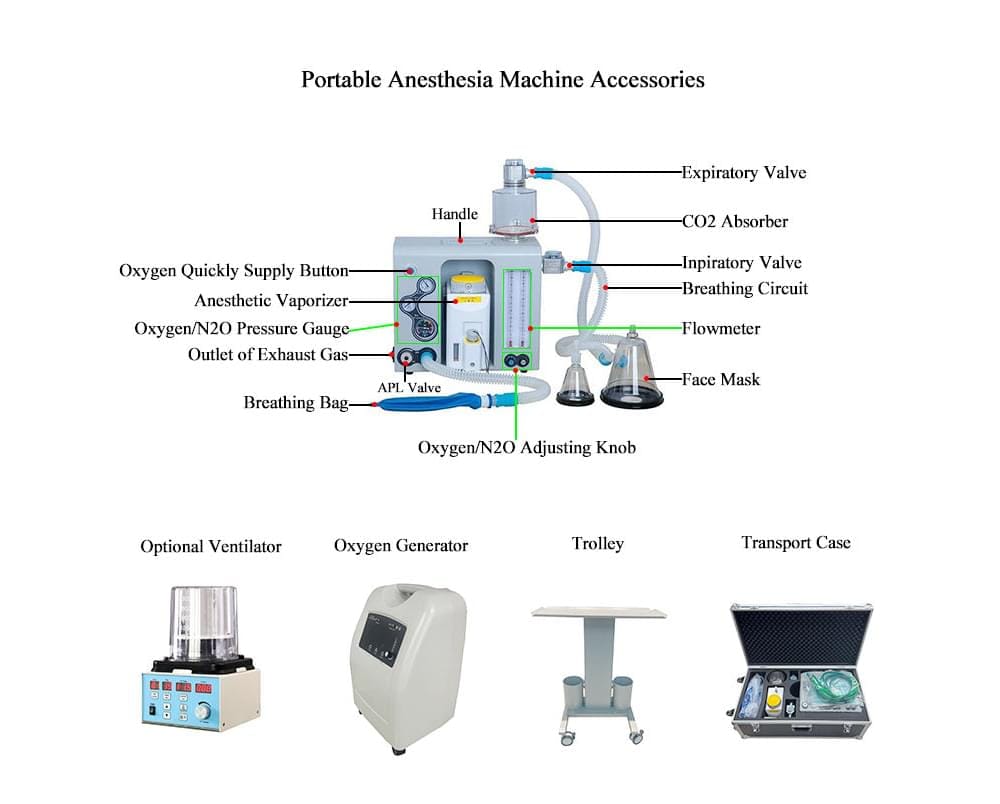

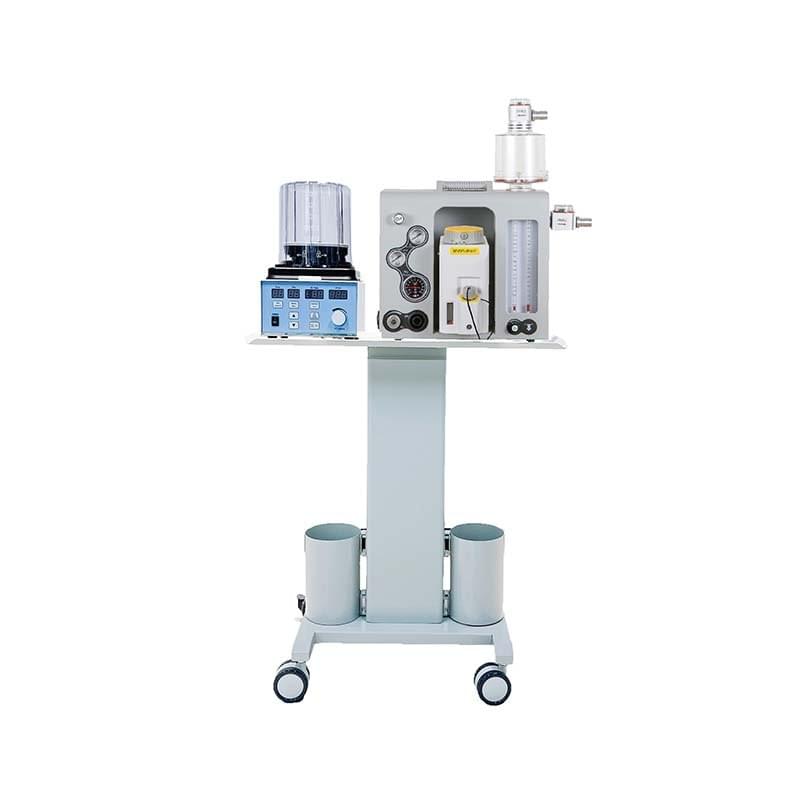

| Optional Accessories | • Anesthesia Ventilator • Trolley • Vaporizer |
| Special Features | • No electricity required—manual only • Compact design for space-limited surgical locations |
Target Applications: Where Safety Cannot Wait
The versatility of this portable veterinary anesthesia machine makes it essential for scenarios where traditional equipment cannot go:
- Veterinary Field Anesthesia: Provides safe, controlled, on-site anesthesia solutions for wildlife rescue, large livestock surgery, or emergency pet care.
- Field Rescue and Disaster Response: An ultimate choice for rescue teams performing emergency surgeries at disaster sites.
- Remote Area Medical: Provides uncompromising anesthesia support in rural clinics or areas with limited power resources.
- Patient Transport: Offers continuous, stable respiratory and anesthesia support for critically ill patients during long-distance transport (with attached oxygen tank).
Quick Start: Ready in Three Steps
The simplicity of the VS-A1-MII ensures rapid preparation. You can master operation with minimal training via the following guide:
- Connection: Quickly connect the oxygen tank and portable ventilator.
- Setup: Adjust the oxygen flow and anesthetic vaporizer concentration.
- Operation: Manually control the ventilator bag and initiate anesthesia.
